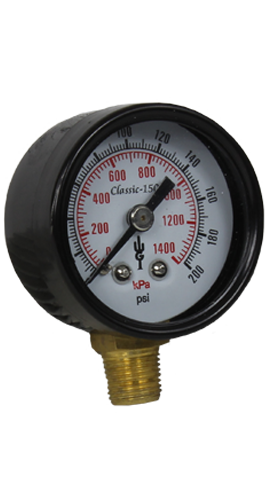

WGI Classic series pressure gauges are for general service applications where cost savings are needed. WGI Classic series gauges are used in many different applications such as pumping systems, hydraulic or pneumatic systems, compressor packages and as a contractors gauge.
Specifications:
Case Material: Black Case – Power Coated
Fill Fluid: None
Lens Material: Glass
Dial: White aluminum with black and red lettering (UV resistant paint)
Pointer: Black aluminum
Accuracy: ± 3%-2%-3% ASME B40.1 Grade B
Tube & Socket: Brass tube soldered to brass socket
Temperature Limits: -20°C (-4°F) — 70°C (158°F) ambient and medium
Pressure Ranges: -30″ Hg Vacuum to 1,000 PSI / kPa
Sizes: 1½”, 2″, 2½”, 3½”, 4″
Product Pressure
0-160 psi
Gauge only Dry - 2.5" Face (0-160 psi) 1/4" bottom inlet
