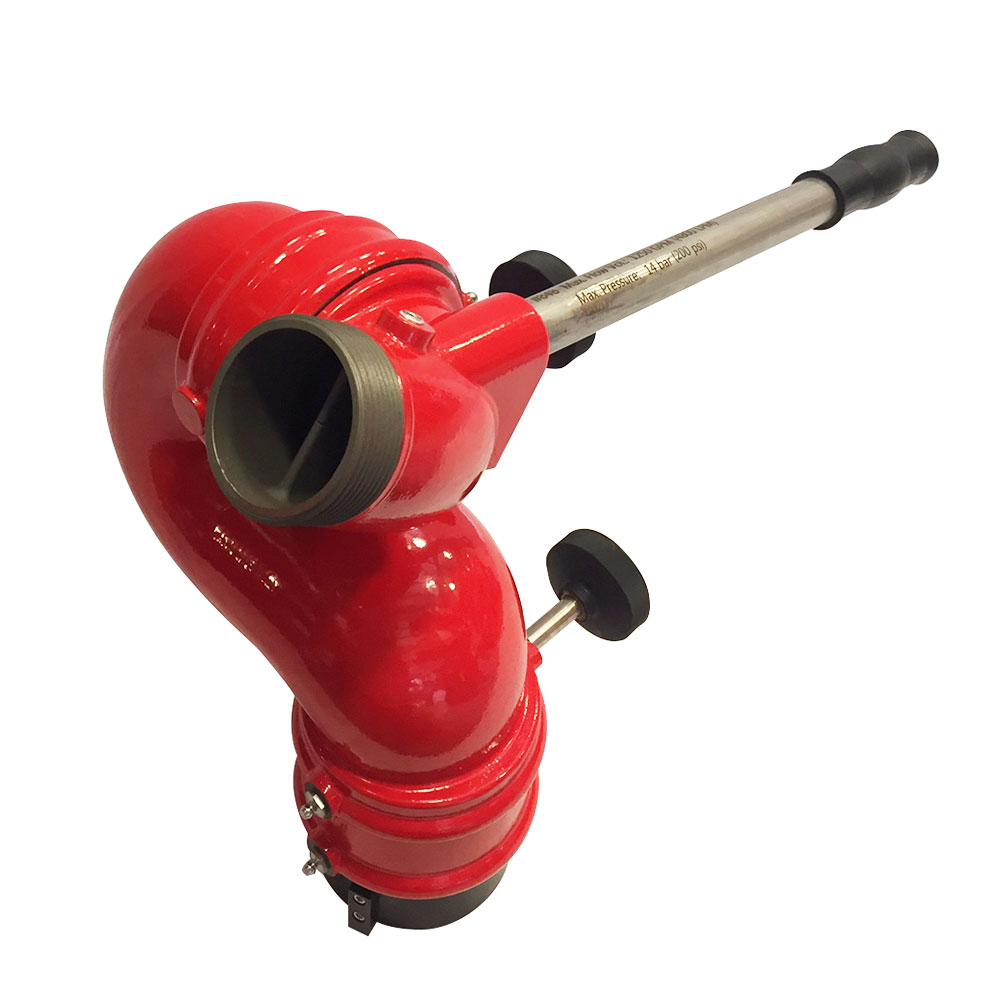

Frontier 848 Fixed 1250gpm Monitor with Rod Control

Product Configuration
- 77mm (3") FF Flange inlet x 65mm (2.5") BAT outlet
- 77mm (3") NPT inlet x 65mm (2.5") BAT outlet
- 77mm (3") NPT inlet x 65mm (2.5") NHT outlet

This combination does not exist.

Flow up to 1,250GPM (4,800 LPM) @ 100 psi
Movement range: 360° horizontal travel & 135° vertical travel.
Cast ball joints are fitted with stainless steel ball bearings and lubricated with a grease nipple for easy maintenance.
Aluminum alloy body.
Epoxy coating exterior.
Manual Rod Control for vertical movement.
Positive twist locks
Easily operated even under high pressure. The geared elevation mechanism is fully enclosed for environmental protection.

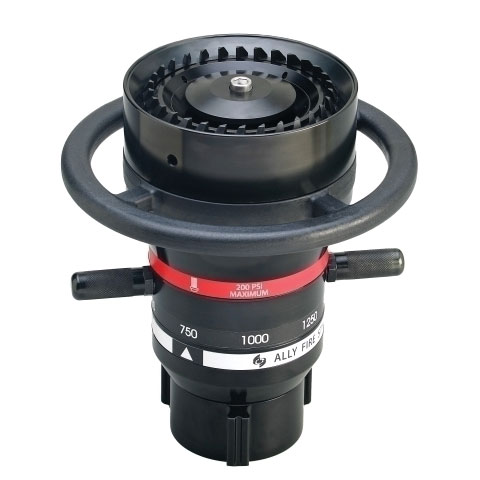

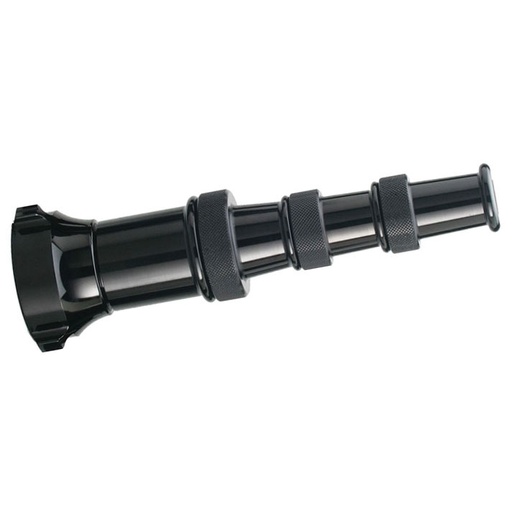

A comprehensive range of water and self-educing foam master nozzles are available for any application.
Full 77mm (3") waterway.
Inlet: 77mm (3") NPT thread (add flange adapter if required)
Discharge Outlet: 65mm (2.5") BAT or NHT threads.
Dimensions: 15" H x 20" W (38cm x 51cm)
Weight: 18.3 lbs (8.3 kg)

* Add for Nozzle and/or Flange adapter if required

Product Configuration

77mm (3") FF Flange inlet x 65mm (2.5") BAT outlet or 77mm (3") NPT inlet x 65mm (2.5") BAT outlet or 77mm (3") NPT inlet x 65mm (2.5") NHT outlet
