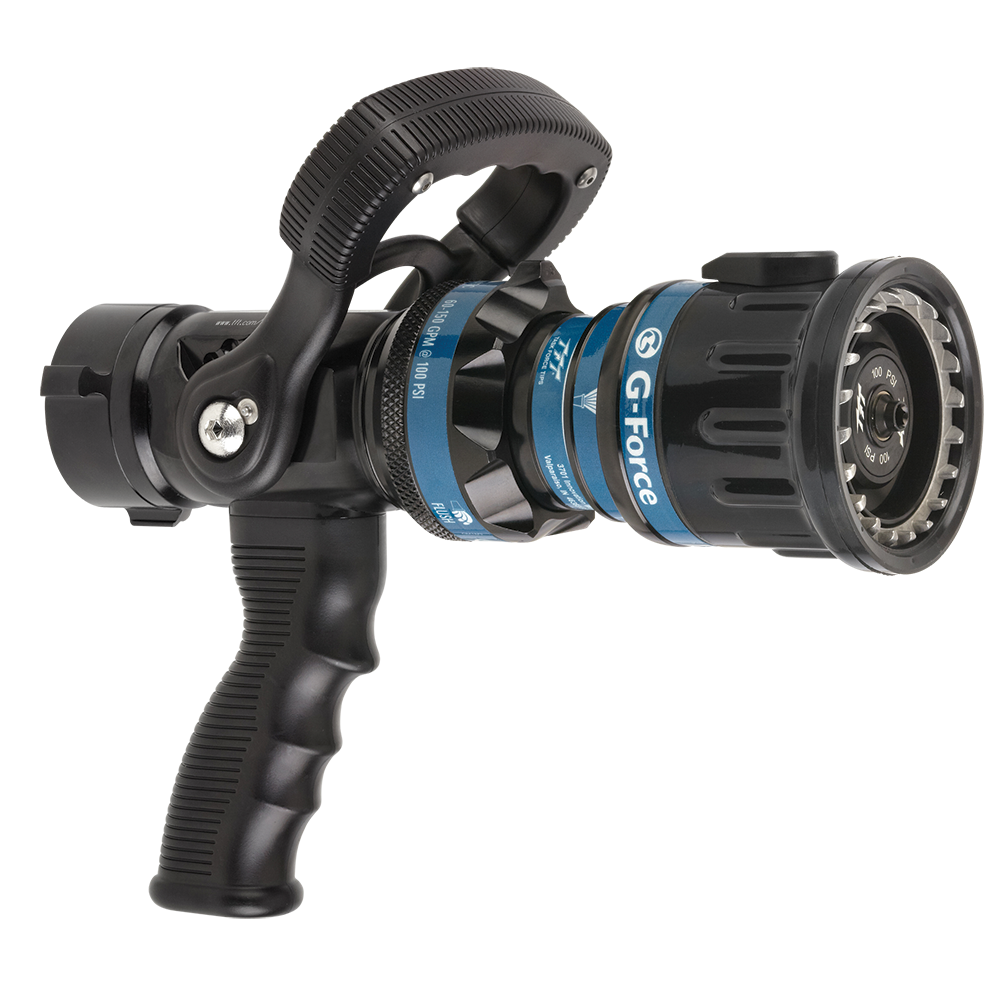

- G-Force 38mm (1.5") Automatic Nozzle NPSH (60-150 GPM)
Based on a highly customizable global nozzle platform design, the unique G-Force series of fixed, selectable, and automatic nozzles combine over 40 years of Task Force Tips design innovation and experience into true next generation firefighting tools. Incorporating unique performance components such as a stainless steel slide valve, inlet debris screen and protective fog pattern choices, the G-Force series delivers high performance and rugged dependability in a low cost package.
* Standard with this product is 38mm (1.5") NPSH thread, metal spinning
teeth and black grip and bale with (60 to 150 gpm range). Can be used
on 38mm (1.5") or 44mm (1.75") hose
Features:
- 1.5" (38mm) or 1" (55mm) NPSH inlet
- Serialization provides track-ability and immediate access to on-line operational instructions
- Integral Inlet Screen prevents debris from entering nozzle and affecting stream quality
- Stainless Steel Slide Valve provides turbulence-free flow control when gated
- Flush without nozzle shutdown or pattern adjustment
- Colour-Coded Polymer Pistol Grip and Valve Handle Covers offer rugged durability in harsh firefighting conditions
- Integral Tactile Indicator, choice of:
- Fixed - straight stream pattern selection
- With Pattern Detent - incorporates a detent setting at a defined and set pattern selection. Tactile and audible detent will be set to partial fog pattern, unless specified otherwise.
- Large Index Ring with Indicator allows easy flow, or flush selections with a gloved hand
- Lightweight Hard Anodized Aluminum Alloy Body includes permanent laser engraved operational markings and highly visible reflective labeling
- Bonded Rubber Bumper provides maximum durability in harsh conditions
- Pressure Control, choice of:
- Fixed Pressure - Optimal straight stream and fog pattern performance are achieved at a single rated flow and single rated pressure
- Selectable Flow with Fixed Pressure - Optimal straight stream and fog pattern performance are achieved at the selected flow and the single rated pressure
- Automatic Pressure/Variable Flow - Optimal straight stream and fog pattern performance are achieved over the rated flow range at the rated pressure
- Fog Teeth, choice of:
- Fixed Cut Metal
- Fixed Moulded Rubber
- Spinning Stainless Steel
- NFPA 1964 compliant
Available other options upon request:
- Fixed Cut Metal, Fixed Moulded Rubber, Spinning Stainless Steel
- Color pistol grip and bales
- Folding handle
- Trigger nozzle options
- One Piece Nozzle with Slide Valve: integrated slide valve provides turbulence-free flow control and five detent flow positions
- One Piece Nozzle with Slide Valve and Pistol Grip: integrated slide valve provides turbulence-free flow control and five detent flow positions
- Two Piece with Tip only and Ball Shut-off Valve: combination nozzle tip combined with full flow ball shut-off valve with six detent flow positions
- Two Piece with Tip only and Ball Shut-off Valve and Pistol Grip: combination nozzle tip combined with full flow ball shut-off valve with pistol grip and six detent flow positions
- Impluse Nozzle with Trigger Flow Control
Product Pressure | 75 psi or 100 psi or 100psi (fixed teeth) |
