The Wildland Li'l Quadpod Sprinkler is a mini water cannon/sprinkler that can supply maximum spray with a radius in a full 360° pattern or set to a partial arc. This mobile water cannon can be connected to other Quadpod Sprinklers to help create or expand a firebreak. It is well-suited for emergency response, municipal works, mills, and resorts. Please refer to the chart below to determine size of pump and water supply needed.

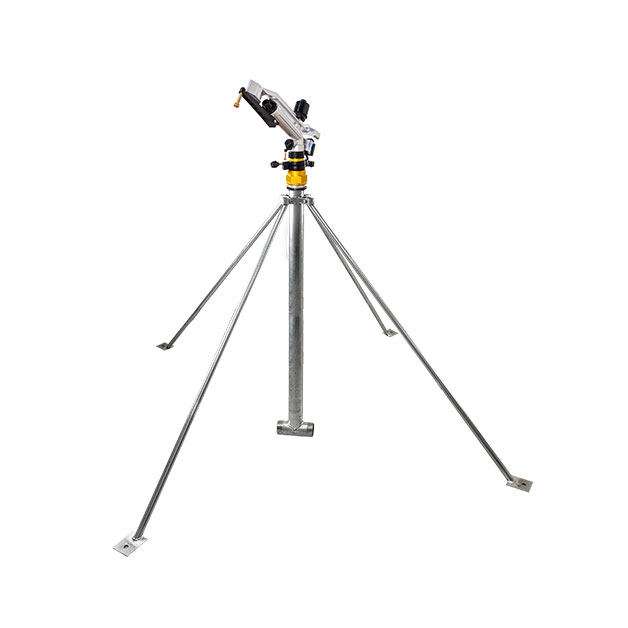

Li'l Gun Wildland Sprinkler Device
- Inlet: (1.5”) 38mm Forestry quick connect
- Working Pressure: 0.2-0.6Mpa(30-90psi)
- Radius: 10-18m (30-60ft)
- Rotation: Horizontal 360°
- Four Legged Quadpod 36"/91cm long,
- Water Inlet: Tee with (2) 38mm forestry connections & one plug. Can be hooked up in series.
- Comes with 5 optional nozzle sizes to meet different pump sizes. 10, 12, 14, 16 & 18mm
We recommend you start with the smallest nozzle if you are setting them up in series. Be sure to calculate you flow and pressure you have available.
See flow chart below for flows and recommended pressures.

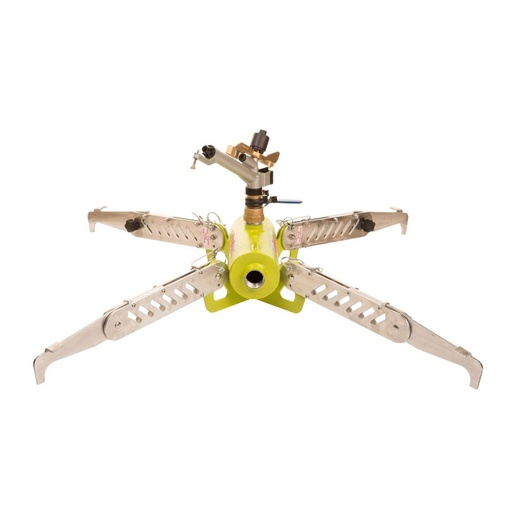

![[P-9057] FireBozz Mini Sprinkler - Mobile Water System](https://cdn.wfrfire.com/web/image/product.template/9057/image_512/%5BP-9057%5D%20FireBozz%20Mini%20Sprinkler%20-%20Mobile%20Water%20System?unique=017d08f)

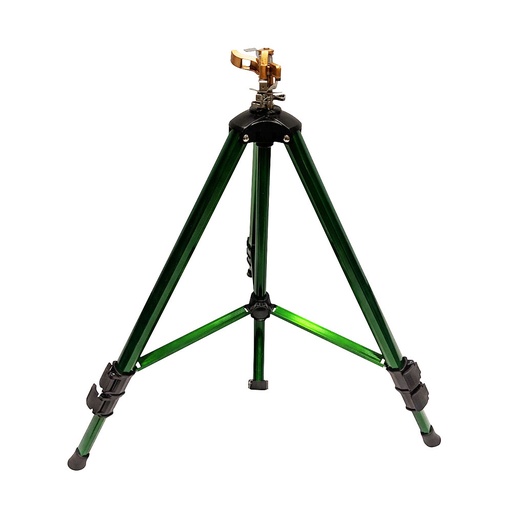

![[710002155] Telescopic Tripod Sprinkler 19mm (0.75") GHT](https://cdn.wfrfire.com/web/image/product.template/81/image_512/%5B710002155%5D%20Telescopic%20Tripod%20Sprinkler%2019mm%20%20%280.75%22%29%20GHT?unique=017d08f)

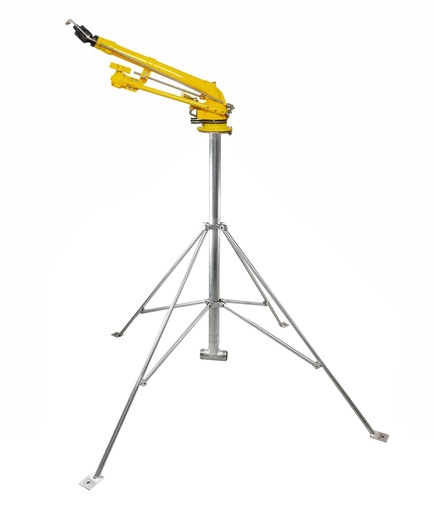

![[P-9648] Wildland Big Gun Quadpod Sprinkler - 38mm (1.5")](https://cdn.wfrfire.com/web/image/product.template/9648/image_512/%5BP-9648%5D%20Wildland%20Big%20Gun%20Quadpod%20Sprinkler%20-%2038mm%20%281.5%22%29?unique=017d08f)
