Seek Scan Kiosk - Skin Temperature Screening Device

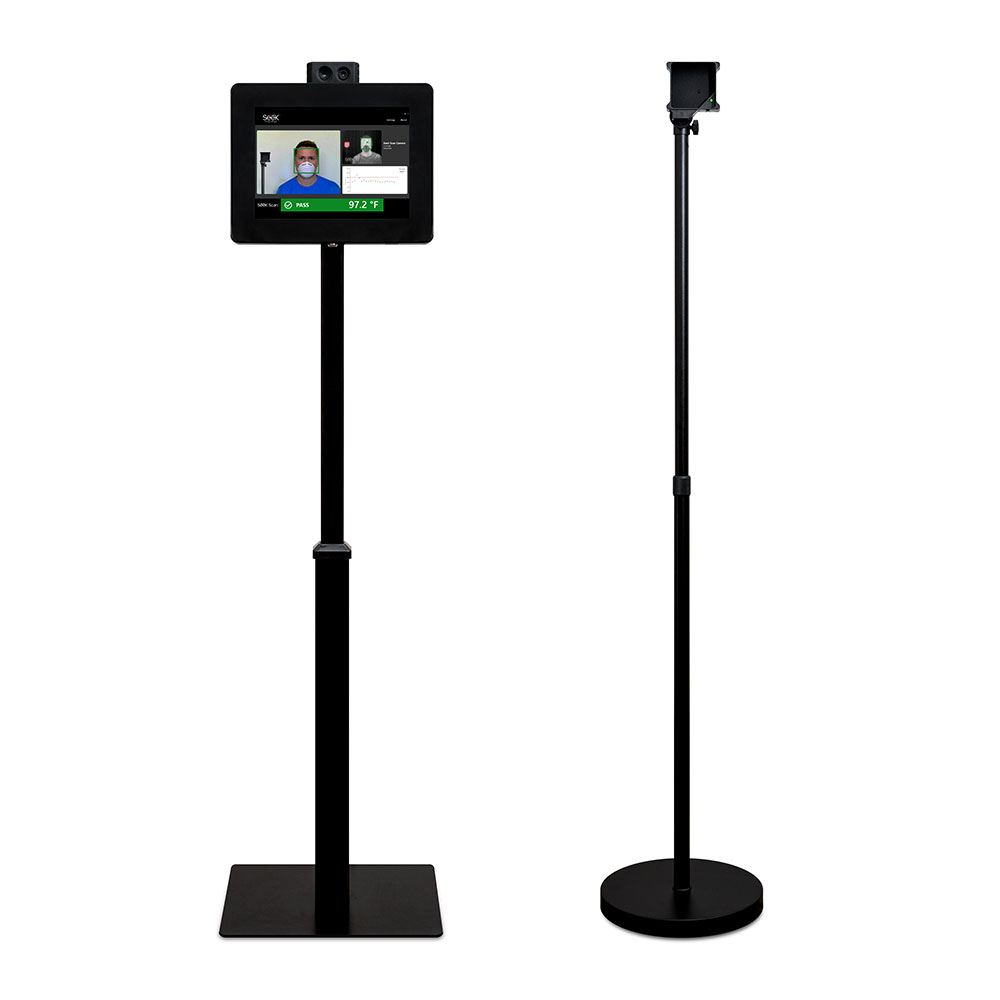

Seek Scan™ Kiosk is an all-in-one, low-cost, thermal imaging system that’s designed to automate body temperature screening by using skin temperature as a proxy. Everything you need to start screening in minutes comes included with Seek Scan Kiosk. This all-in-one solution comes with a Seek Scan Camera and Reference Heat Source, a 10” tablet, durable aluminum stands, and all required cables.

With ±0.3°C (±0.5°F) of accuracy, Seek Scan Kiosk delivers the same performance as an infrared temporal thermometer – but automated from a safe social distance.

The system can be installed in lobbies, hallways and other key access points to help businesses, institutions and venues reopen a safer environment for their workforce, customers, members and patrons. Easy-to-install and easy-to-use, the system can be up and running in minutes with no special equipment or training.

• Everything you need is included in the box

• Same performance as a temporal thermometer, but with a safe social distance

• Specifically designed and calibrated for skin temperature measurement

• Accurate, automated and affordable

• APIs available for access control, VMS and other network capabilities

• Meets FDA Guidelines for initial body temperature assessment


How it works

Seek Scan is specifically designed and calibrated to deliver accurate skin temperature measurements while enabling social distancing protocols. In seconds, the system automatically detects a face, identifies the most reliable facial features for measurement, and displays an estimated body temperature. A visual and audible alert is provided if someone is warmer than the customizable alarm temperature.

​Unlike typical industrial thermal cameras, Seek Scan™ was developed for precise temperature measurement and maximizes accuracy by referencing a fixed heat source with a known temperature value. The system measures the inner canthus as the primary reference site and measures the warmest spot on the face as a secondary reference site when needed. Seek’s patent-pending heat source allows Seek Scan to achieve much higher accuracy than a standard thermal imaging camera designed for industrial use. Any system that does not have a reference heat source does not follow new FDA guidelines published April, 2020, despite manufacturer claims.

​The Seek Scan process provides an additional layer of preventive screening and can deliver more peace of mind to businesses, institutions and participants.

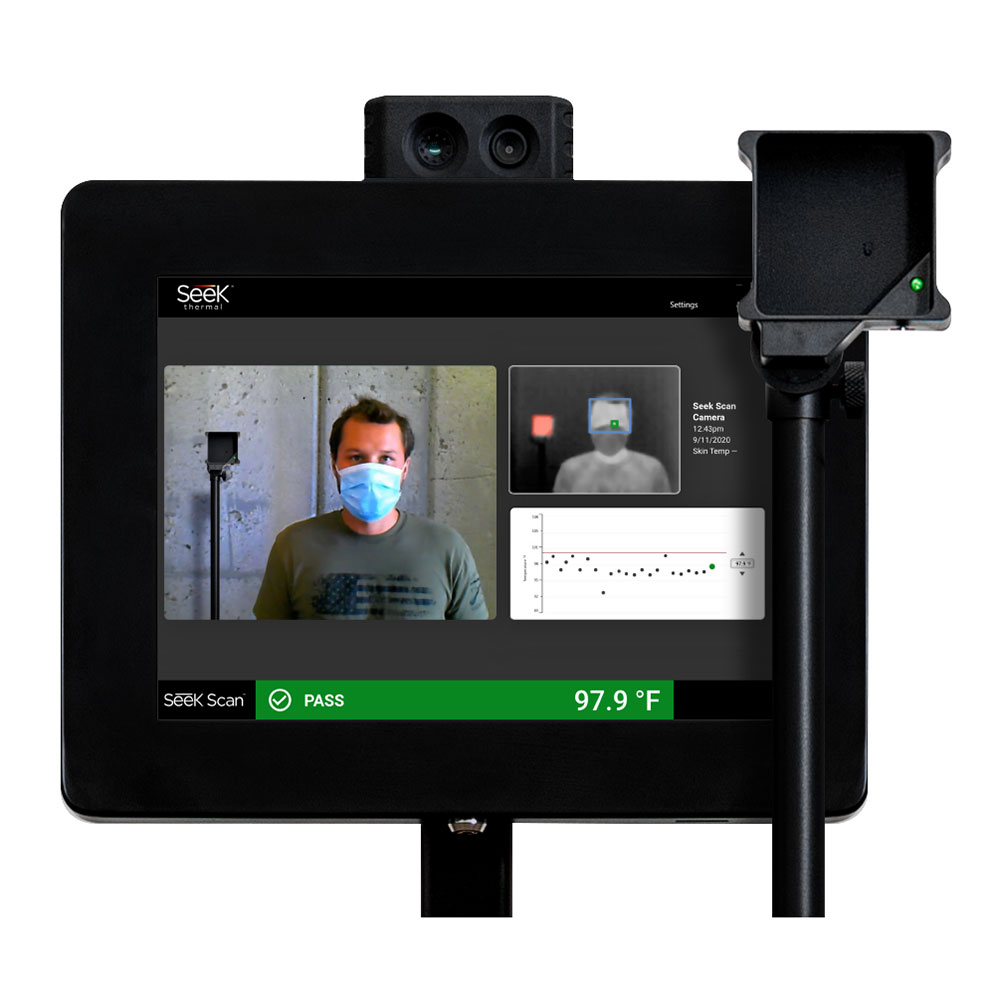

Face detected. Seek Scan is measuring skin temperature.

Estimated body temperature is below the alarm temperature.

Estimated body temperature is above the alarm temperature.

An option to turn off temperature display is available in the settings menu.

Key Features & Benefits

Fast, Automated Screening

In seconds, the system detects a face, finds the most reliable spot to measure and displays a pass/fail alert.

Enables Social Distancing

Delivers the same performance as a temporal thermometer - but with a safe social distance.

Affordable

Affordable thermal screening system that meets FDA guidelines for initial body temperature assessment during the Covid-19 Public Health Emergency.



Email Notifications

Receive an email notification every time someone measures above the customizable alarm temperature.



API Integration

Send alarm events, trigger access control and video management systems, pull and present historical data to integrate and stream multiple Seek Scans into one enterprise solution.



Meets FDA Guidelines

Start scanning in minutes using two tripods and a Windows PC. No special equipment or training required.

Software Updates available here

*Patents pending on Seek Scan System and Fixed Heat Source

What's in the box

Other Items Included:

• Seek Scan Software pre-installed on tablet
• Fasteners and tools for assembly
• Two enclosure keys
• US, EU & UK AC plugs
• User Manual
• Warranty

* Items shown above are not to scale.

Skin temperature vs body temperature

Seek Scan measures skin temperature as a proxy for body temperature.

Here are a few things to know about skin temperature measurement:

• Skin temperature is typically a few degrees less than body temperature. Similar to an infrared temporal thermometer, Seek Scan uses skin temperature to provide an estimated body temperature.
• Seek Scan is programed to measure the most reliable parts of the face to produce the best results with high accuracy.
• A person's skin temperature may vary based on a variety of circumstances such as ambient temperature, sweat and eyewear. For this reason, Seek Scan is intended for indoor use only and in environmentally controlled rooms.
• Distance is critical to performance. We recommend marking the floor with tape or decals to ensure all subjects are measured from the exact same distance and while positioning the subject next to the heat source.
