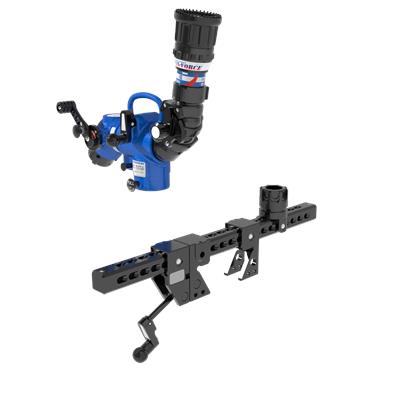

The Hemisphere is a versatile, lightweight, and quick to deploy
portable monitor that gives the user the ability to quickly establish
water flow in locations that ground monitors cannot. Since the
Hemisphere doesn’t rely on gravity for stability, it can be pointed
horizontal and down, in addition to up, unlike portable ground monitors.
The rotating, swiveling waterway, allows the stream to be pointed in
virtually any direction, within a hemispherical range without
interrupting water flow. A variety of mounts, including, an I-beam clamp
that doubles as a 2" hitch mount, a dedicated hitch mount, and fixed
mounts, provide the user the ability to quick attached the monitor, and
establish coverage on the fire ground, or in pre-planned locations. An
integrated, quarter turn, aluminum half ball calve, with locking bail
handle, provides shutoff capability. The monitor and valve bodies are
hard coat anodized aluminum inside and out with a blue TFT powder coat
finish.
* Our Standard option comes with the monitor, MaxForce
500gpm and the I-beam Clamp/2" Hitch mount. Other configurations are
available include other threads and mount options upon request.
- Flow range up to 500 gpm (2,000 lpm)
- Outlet: 2.5" (65mm) Male, Inlet: 2.5"-7.5" Female
- Swiveling 90 degree valved inlet
- Rotating, swiveling outlet is manually adjustable via a double ball swivel angled 40 degrees away from the main waterway
- Capable of sweeping 80 degrees and can be rotated about the main waterway a full 360 degrees by a hand crank
- Built in stream straightener
- Quarter turn ball valve features bail type handle, which licks in the closed position to prevent accidental discharge
- Attach to various mounting options by sliding the socket at the base onto the quick attach mounting base
- Rotation
release lever (separate from the release pin) allows the monitor to be
rotated about its base without releasing monitor from its base
- Water
pressurized pins prevent the monitor from rotating or releasing while
flowing and a separate mechanism in the release pull pin prevents the
monitor from releasing when the weight of the monitor is unsupported
- Built-in carrying handle
- Size without nozzle: 12"h x 12.2"w x 22.5"d (30.5cm x 31cm x 57.2cm)
- Weighs 22.5lbs. (10.2kg)

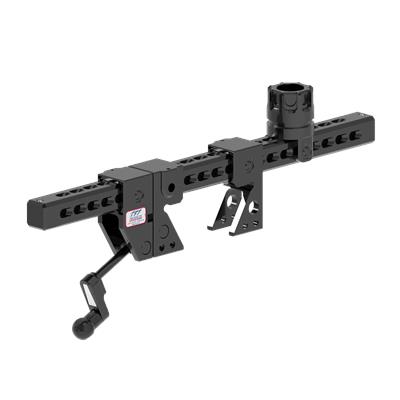

![[441208150] TFT Hemisphere Monitor Mount Components (I-Beam Clamp/2"Hitch Mount)](https://cdn.wfrfire.com/web/image/product.product/15743/image_512/%5B441208150%5D%20TFT%20Hemisphere%20Monitor%20Mount%20Components%20%28I-Beam%20Clamp-2%22Hitch%20Mount%29?unique=1f278b0)
