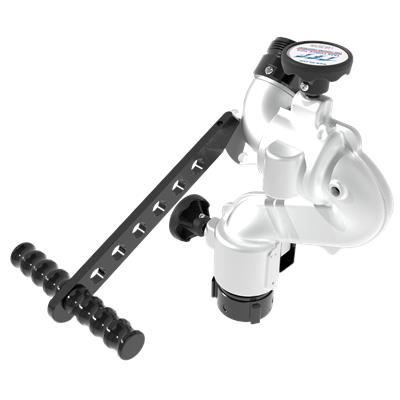

TFT Tornado Tiller Monitor 500 GPM
Nozzles/Monitors
Features
Rated up to 500 gpm, the Tornado is a truck-mounted or fixed installation monitor. The tiller handle shall provide elevation control from 90° above horizontal to 45° below horizontal. The unit shall have a full 360° continuous horizontal rotation with locking knob. User installed travel limit stops shall be included. The monitor shall be constructed of hard coat anodized aluminum alloy and shall have a silver powder coat finish inside and out. Various flange and threaded inlets including locking quick connect shall be available (specify). Unit shall have serial number and a 5-year warranty.
Specifications
- Apparatus: Pumper
- Finish: Stardust Silver
- Horizontal Control: Tiller Bar w/Lock
- Horizontal Movement: Continuous 360 degrees
- Max Flow: 500 gpm (2,000 l/min)
- Operation Energy Source: Manual
- Oscillation: No
- Remote Control: No
- Valve Design: No Valve
- Vertical Control: Tiller Bar w/Lock
- Vertical Movement: 45 degrees below to 90 degrees above horizontal
- Weight: 15.5
